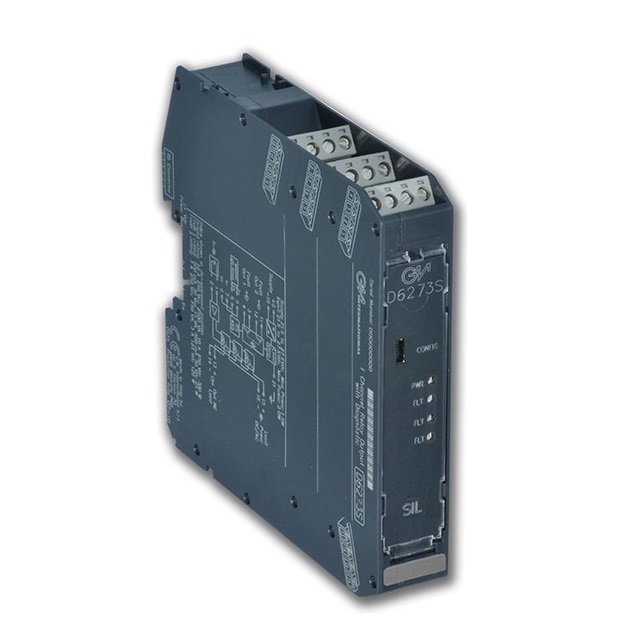

• D6273S SIL 2 according to IEC 61508 for Tproof = 5 years (10 % of total SIF).
• mV, thermocouple, 2 or 3 or 4 wire RTD or transmitting potentiometer Input Signal.
• 2-wire RTD line resistance compensation.
• Internal Reference Junction Compensation automatic or fixed (programmable value).
• Fastest integration time: 50 ms
• 4-20 mA Output Signal temperature linear or reverse.
• Modbus RTU RS-485 Output.
• Two independent Trip Amplifiers each with SPDT relay contacts 4A 250 Vac 1000VA
• Multiple Fault detection.
• High Accuracy, μP controlled A/D converter.
• Three port isolation, Input/Output/Supply.
• EMC Compatibility to EN61000-6-2, EN61000-6-4, EN61326-1, EN61326-3-1 for safety system.
• Fully programmable operating parameters.
• High Density, one Analog Output + two Alarms.
• Simplified installation using standard DIN-Rail and plug-in terminal blocks, with or without Power Bus.
• 250 Vrms (Um) max. voltage allowed to the instruments associated with the barrier.
IEC 61508-SIL 2
如需提供其他型號，請聯繫我們。
D6000 SERIES

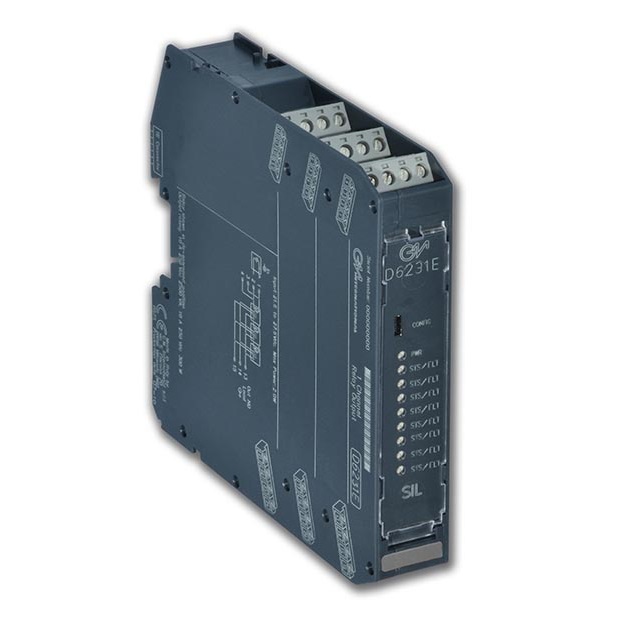

D6231E
• SIL 2 according to IEC 61508 for Tproof = 5 yrs (10 / 20 % of total SIF).
• 8 fully independent channels
• NO/NC switch/proximity Detector Input, NO/NC solid-state output relay .
• Field open and short circuit detection.
• High Accuracy, μP controlled A/D converter.
• Three port isolation, Input/Output/Supply.
• Modbus RTU RS-485 Output.
• EMC Compatibility to EN61000-6-2, EN61000-6-4, EN61326-1, EN61326-3-1 for safety system.
• Fully programmable operating parameters.
• Any input can be assigned to any number of outputs. Logical output functions available.
• High Density, eight channels per unit.
• Simplified installation using standard DIN-Rail and plug-in terminal blocks, with or without power Bus, or customized Termination Boards.
• 250 Vrms (Um) max. voltage allowed to the instruments associated with the barrier.
IEC 61508-SIL 2
如需提供其他型號，請聯繫我們。
D6000 SERIES
D6072S
• SIL 2 according to IEC 61508 for Tproof = 5 years (10 % of total SIF).
• mV, thermocouple, 2 or 3 or 4 wire resistance/RTD or transmitting potentiometer Input Signal.
• 2-wire RTD line resistance compensation.
• Internal Reference Junction Compensation automatic or fixed (programmable value).
• Fastest integration time: 50 ms
• Fully customizable Output range from 0 to 24 mA Output Signal linear or reverse (typical 0/4-20 mA).
• Output duplication possible for D6072D.
• Independent multiple Fault detection.
• Programmable alarm available on photoMOS output or Termination Board connector.
• High Accuracy, μP controlled A/D converter.
• Three port isolation, Input/Output/Supply.
• EMC Compatibility to EN61000-6-2, EN61000-6-4, EN61326-1, EN61326-3-1 for safety system.
• Fully programmable operating parameters.
• High Density, two channels per unit.
• Simplified installation using standard DIN-Rail and plug-in terminal blocks, with or without Power Bus, or customized Termination Boards.
• 250 Vrms (Um) max. voltage allowed to the instruments associated with the barrier.
• Data logging and monitoring via software.
IEC 61508-SIL 2
如需提供其他型號，請聯繫我們。
D6000 SERIES
D6072D
• SIL 2 according to IEC 61508 for Tproof = 5 years (10 % of total SIF).
• mV, thermocouple, 2 or 3 or 4 wire resistance/RTD or transmitting potentiometer Input Signal.
• 2-wire RTD line resistance compensation.
• Internal Reference Junction Compensation automatic or fixed (programmable value).
• Fastest integration time: 50 ms
• Fully customizable Output range from 0 to 24 mA Output Signal linear or reverse (typical 0/4-20 mA).
• Output duplication possible for D6072D.
• Independent multiple Fault detection.
• Programmable alarm available on photoMOS output or Termination Board connector.
• High Accuracy, μP controlled A/D converter.
• Three port isolation, Input/Output/Supply.
• EMC Compatibility to EN61000-6-2, EN61000-6-4, EN61326-1, EN61326-3-1 for safety system.
• Fully programmable operating parameters.
• High Density, two channels per unit.
• Simplified installation using standard DIN-Rail and plug-in terminal blocks, with or without Power Bus, or customized Termination Boards.
• 250 Vrms (Um) max. voltage allowed to the instruments associated with the barrier.
• Data logging and monitoring via software.
IEC 61508-SIL 2
如需提供其他型號，請聯繫我們。
D6000 SERIES
D6031S
• 2 fully independent channels (model D6031D).
• NO/NC switch/proximity Detector Input, NO/NC transistor driving mode.
• Field open and short circuit detection.
• Three port isolation, Input/Output/Supply.
• EMC Compatibility to EN61000-6-2, EN61000-6-4, EN61326-1, EN61326-3-1 for safety system.
• In-field programmability by DIP Switch.
• High Density, two channels per unit.
• Simplified installation using standard DIN-Rail and plug-in terminal blocks, with or without Power Bus, or customized Termination Boards.
• 250 Vrms (Um) max. voltage allowed to the instruments associated with the barrier.
IEC 61508-SIL 3
如需提供其他型號，請聯繫我們。
D6000 SERIES
D6030D
• 2 fully independent channels (model D6030S also available).
• NO/NC switch/proximity Detector Input,NE/ND relay actuation mode.
• Field open and short circuit detection.
• Three port isolation, Input/Output/Supply.
• EMC Compatibility to EN61000-6-2, EN61000-6-4,EN61326-1, EN61326-3-1 for safety system.
• In-field programmability by DIP Switch.
• High Density, two channels per unit.
• Simplified installation using standard DIN-Rail and plug-in terminal blocks, with or without Power Bus.
• 250 Vrms (Um) max. voltage allowed to the instruments associated with the barrier.
IEC 61508-SIL 3
如需提供其他型號，請聯繫我們。
D6000 SERIES
D6020S
• 2 fully independent channels (model D6020D).
• 4-20 mA Input, Output Signal.
• Hart compatible.
• Field open and short circuit detection and signaling for each channel and cumulative.
• High Accuracy.
• Three port isolation, Input/Output/Supply.
• EMC Compatibility to EN61000-6-2, EN61000-6-4, EN61326-1, EN61326-3-1 for safety system.
• In-field programmability by DIP Switch.
• High Density, two channels per unit.
• Simplified installation using standard DIN-Rail and plug-in terminal blocks, with or without Power Bus, or customized Termination Boards.
• 250 Vrms (Um) max. voltage allowed to the instruments associated with the barrier.
IEC 61508-SIL 3
如需提供其他型號，請聯繫我們。
D6000 SERIES
D6014D
• 0/4-20 mA Input / Output Signal Active-Passive / Source-Sink
• Hart compatible.
• Input and Output short circuit proof.
• High Accuracy.
• Three port isolation, Input/Output/Supply.
• EMC Compatibility to EN61000-6-2, EN61000-6-4, EN61326-1, EN61326-3-1 for safety system.
• In-field programmability by DIP Switch.
• High Density, two channels per unit.
• Simplified installation using standard DIN-Rail and plug-in terminal blocks, with or without Power Bus, or customized Termination Boards.
• 250 Vrms (Um) max. voltage allowed to the instruments associated with the barrier.
IEC 61508-SIL 3
如需提供其他型號，請聯繫我們。
D6000 SERIES
D6011S
00000
如需提供其他型號，請聯繫我們。
D6000 SERIES

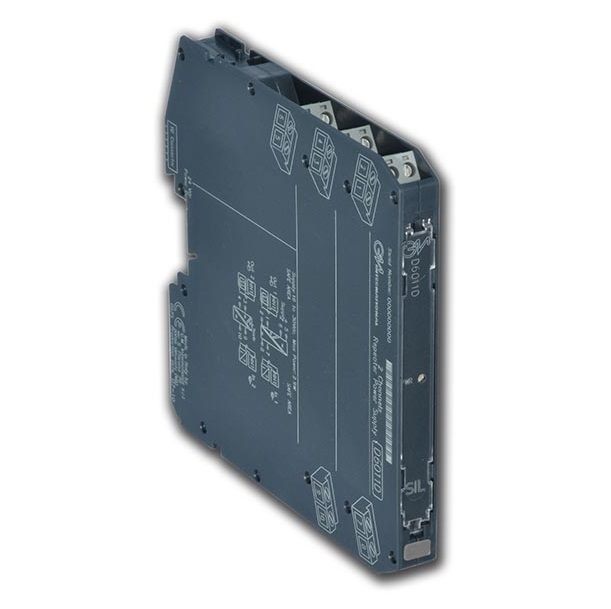

D6011D
• 4-20 mA Input / Output Signal, Source mode.
• Hart compatible.
• Input and Output short circuit proof.
• High Accuracy.
• Three port isolation, Input/Output/Supply.
• EMC Compatibility to EN61000-6-2, EN61000-6-4, EN61326-1, EN61326-3-1 for safety system.
• Simplified installation using standard DIN-Rail and plug-in terminal blocks, with or without Power Bus, or customized Termination Boards.
• 250 Vrms (Um) max. voltage allowed to the instruments associated with the barrier.
