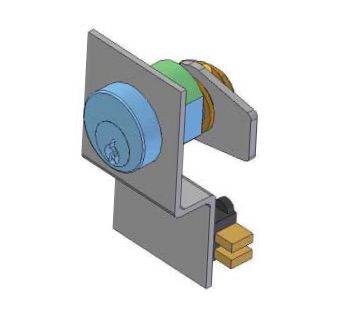

The CHM1P is a key driven electrical switch suitable for the isolation of switching of low current (10A).
Standard block are 2 poles, 1O1C, 415V, 10A.
All contacts are UL and CE approved
Attachment to panel by screw.
Electrical contact: 1 normally open and 1 normally closed.
Direction of key rotation: 1/4 turn to the right.
Weight:
250g
Material:
- Body: Stainless steel 304
Options:
- Other switches on demand
如需提供其他型號，請聯繫我們。
Camlock
The movement of the key rotates the lock. Lock can be used in panels.
The lock can be equipped with a flip cap.
Cam to be ordered separately.
Features:
- Mounting: by screws
- Material : nickel-plated brass
- Direction of cam: 90∘ clockwise (trapping key)
- Rotation of key: CW
如需提供其他型號，請聯繫我們。
Profalux Type Cylinder
L Cylinder P Profile
This cylinder is the indicated for European standard panels and is coupled with the Profalux key.
- Full metal cylinder, no plastic parts;
- Camlocks with length of 24mm (A);
- 90∘ clockwise or anti-clockwise rotation.
The movement of the key rotate the lock. Lock is typically used in panels.
Key rotation - rotation of cam: 1/4 or 1/2 turn to right or left.
Attachment to panel by nut, designed for panel thickness of 0.8 to 10mm. (0.03" to 0.39").
Various cam arrangements are possible. Cam to be ordered separately. Please refer to accessories page at the end of catalogue.
Possibilities:
Direction of key rotation:
- right - CW
- left - CC (AW)
Value of key rotation:
- 1/4 turn - 4
- 1/2 turn - 2
Options:
- Cams
- Spacer rings 4 or 6mm, thickness.
Weight:
100g
如需提供其他型號，請聯繫我們。
Large US Cylinder
This cylinder is the indicated for American stabdard panels and is coupled with the standard flat key.
Diameter 29mm.
Key rotation - rotation of cam: 360∘ any direction
Attachment to panel by nut, designed for panel thickness of 0.8 to 10mm.
Various cam arrangements are possible.
Options:
- Cams
如需提供其他型號，請聯繫我們。
Cylinder
S Cylinder
This cylinder is the smallest for the flat key interlock, diameter 23mm.
Key rotation - rotation of cam: 1/4 turn to right.
Attachment to panel by nut, designed for panel thicjness of 0.8 to 10mm.
Options:
- Direction of key rotation on the left;
- Cams;
- Spacer rings 4 or 6mm thickness.
Weight:
100g
如需提供其他型號，請聯繫我們。
C style cylinder
L cylinder
This cylinder is the indicated for European standard panels and is coupled with the standard flat key.
- Full metal cylinder, no plastic parts;
- Camlocks with length of 24mm. (A);
- 90∘ clockwise or anti-clockwise rotation.
