Output power 0.065 to 2.2 kW
Frame size IEC 56 to 100
Number of poles 2 to 8
Voltages all commonly used voltages
Frequency 50 or 60 Hz
Protection IP 55
如需提供其他型號，請聯繫我們。

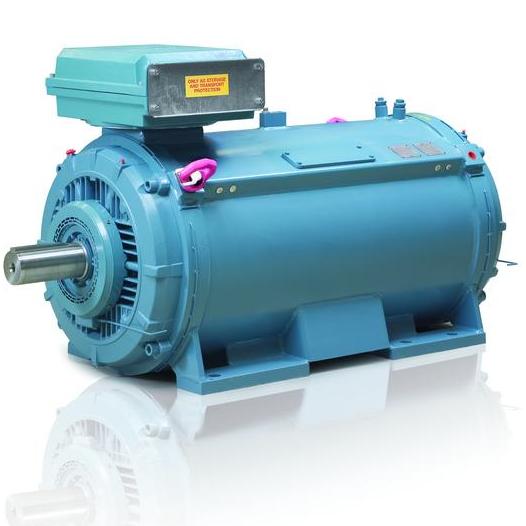

Low voltage water cooled motors
Output power 90 to 1200 kW
Frame size IEC 280 to 450
Number of poles 2 to 8
Voltages all commonly used voltages
Frequency 50 or 60 Hz
Protection IP 55, IP 56
Cooling IC71W
A high efficiency motor; fulfills IE2 requirements.
如需提供其他型號，請聯繫我們。

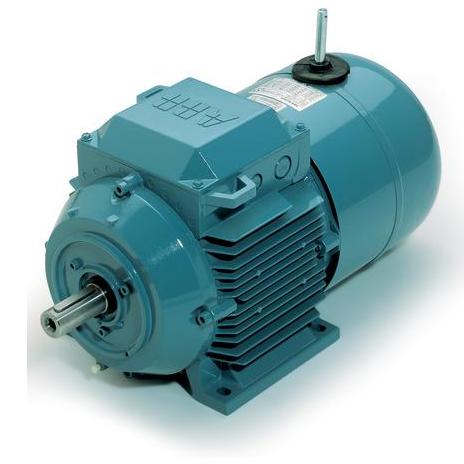

Brake motors
Output power 0.055 to 22 kW
Frame size IEC 63 to 180
Number of poles 2 to 8
Voltages Wide voltage range up to 690 V
Frequency 50 or 60 Hz
Protection IP 55
如需提供其他型號，請聯繫我們。
Roller table motors
M3RP
Output power 70 to 2,300 Nm
Frame size IEC 180 to 450
Number of poles 6 to 12
Voltages all commonly used voltages
Frequency 50 or 60 Hz
Protection IP 55
如需提供其他型號，請聯繫我們。

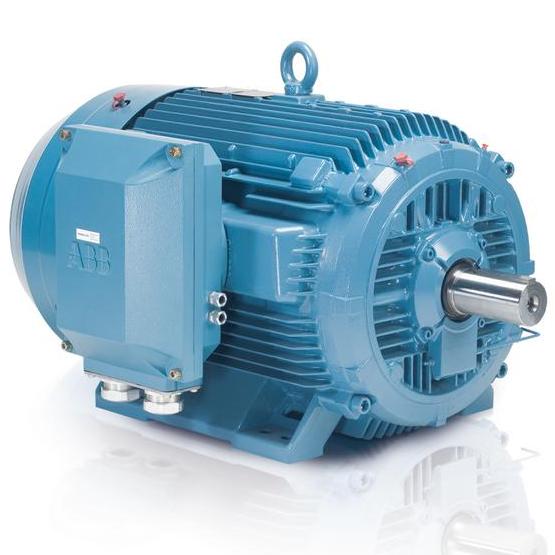

Process performance NEMA motors
M3BN
Output power 100 to 800 HP
Frame size 405 to 588
Number of poles 2 to 8
Voltages 220 to 690 V
Frequency 60 Hz
Protection IP55
Cooling IC411
Enclosure material Cast iron
Service factor 1.5
Insulation Class F insulation, temperature rise class B
Standards EEMAC, NEMA, EPAct, CSA
如需提供其他型號，請聯繫我們。
Process performance IE3 premium efficiency cast iron motors
M4BP
Frame sizes 160 to 355
Output range 11 to 250kW
Poles 2 to 8 poles
Frame material Cast iron
Voltage up to 690 V
如需提供其他型號，請聯繫我們。
Process performance IE2 high efficiency aluminum motors
M3AA
Output power 0.12 to 90 kW
Frame size IEC 63 to 280
Frame material Aluminum
Number of poles 2 to 8
Voltages All commonly used voltages
Frequency 50 or 60 Hz
Protection IP 55
如需提供其他型號，請聯繫我們。
Process performance IE2 high efficiency cast iron motors
M3BP
Output power 0.25 to 1000 kW
Frame size IEC 71 to 450
Frame material Cast iron
Number of poles 2 to 8, other on request
Voltages All commonly used voltages
Frequency 50 or 60 Hz
Number of speed 1 and 2 speed
Protection IP 55
如需提供其他型號，請聯繫我們。
General performance IE1 standard efficiency aluminum motors
M2AA
Output power 0.06 to 55 kW
Frame size IEC 56 to 250
Number of poles 2 to 8
Voltages All commonly used voltages
Frequency 50 or 60 Hz
Protection IP 55
如需提供其他型號，請聯繫我們。
General performance IE1 standard efficiency cast iron motors
M2BA
Output power 0.25 to 55 kW
IEC Frame sizes 71 to 250
Number of poles 2 to 6
Voltages all common voltages
Frequency 50 or 60 Hz
Protection IP 55
如需提供其他型號，請聯繫我們。
General performance IE2 high efficiency steel motors
M2CA
Output power 75 to 630 kW
Frame size IEC 280 to 400
Number of poles 2 to 8
Voltages All commonly used voltages
Frequency 50 or 60 Hz
Protection IP 55
如需提供其他型號，請聯繫我們。
General performance IE2 high efficiency aluminum motors
M2AA
Output power 0.06 to 55 kW
Frame size IEC 56 to 250
Number of poles 2 to 8
Voltages All commonly used voltages
Frequency 50 or 60 Hz
Protection IP 55
如需提供其他型號，請聯繫我們。
General performance IE2 high efficiency cast iron motors
M2BA M2BAT
Output power 0.25 to 250 kW
IEC Frame sizes 71 to 355
Number of poles 2 to 6
Voltages all common voltages
Frequency 50 or 60 Hz
