- Power consumption: 12W (27W peak with FF on) - 1A @ 12V
- Supply Voltage: 10-35 Vdc
- Cartridge slots: 1 x SD-Card

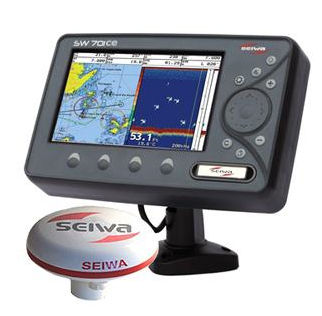

- GPS Antenna: SW701ce external with cable
- Operating temperature: 0-55 °C
- Frequency: 50/200 Khz
-Depth Range:
◦1KW/200kHz : 2.5Ft (0.76m) to 1200Ft (366m), Typical 980Ft (299m);
◦1KW/50kHz : 5Ft (1.52m) to 4000Ft (1219m), Typical 2700Ft (823m);
◦600W/200kHz : 2.5Ft (0.76m) to 700Ft (213m), Typical 600 Ft (183m);
◦600W/50kHz : 5Ft (1.52m) to 1500Ft (457m), Typical 1350 Ft (411m)
- Connectors:
◦In/Out NMEA ports: 4 x Nmea 0183
◦Video Input: 1 PAL or NTSC composite video
◦For SW701ce, the GPS connection is made through the quick disconnect bracket
◦Power In/Out: 10 pin
EN 60945
如需提供其他型号，请联系我们。
SW701ci
P2CJT10BSE
- Microprocessor: ARM9 S32442MSP3 300 Mhz
- Display: 7 " TFT LCD Colour
- Sunlight viewable Display
- Resolution: 800x480
- Power consumption: 12W (27W peak with FF on) - 1A @ 12V
- Supply Voltage: 10-35 Vdc
- Cartridge slots: 1 x SD-Card
- GPS Antenna: SW701ci internal
- Operating temperature: 0-55 °C
- Frequency: 50/200 Khz
- Depth Range:
◦1KW/200kHz : 2.5Ft (0.76m) to 1200Ft (366m), Typical 980Ft (299m);
◦1KW/50kHz : 5Ft (1.52m) to 4000Ft (1219m), Typical 2700Ft (823m);
◦600W/200kHz : 2.5Ft (0.76m) to 700Ft (213m), Typical 600 Ft (183m);
◦600W/50kHz : 5Ft (1.52m) to 1500Ft (457m), Typical 1350 Ft (411m)
- Connectors:
◦In/Out NMEA ports: 4 x Nmea 0183
◦Video Input: 1 PAL or NTSC composite video
◦For SW701ce, the GPS connection is made through the quick disconnect bracket
◦Power In/Out: 10 pin
EN60945 EN301489-1 EN301489-19
如需提供其他型号，请联系我们。
SW501ce
P2CHT10ESE
- Microprocessor: ARM9 S32442MSP3 300MHz
- Display: 5" TFT LCD Colour
- Sunlight viewable Display
- Resolution: 240x320
- Power consumption: 12W (24W peak with FF on) - 1A @ 12V
- Supply Voltage: 10-35 Vdc
- Cartridge slots: 1 x SD-Card
- GPS Antenna: SW501ce external with cable
- Operating temperature: 0-55 °C
- Frequency: 50/200 Khz
- Depth Range:
◦1KW/200kHz : 2.5Ft (0.76m) to 1200Ft (366m), Typical 980Ft (299m);
◦1KW/50kHz : 5Ft (1.52m) to 4000Ft (1219m), Typical 2700Ft (823m);
◦600W/200kHz : 2.5Ft (0.76m) to 700Ft (213m), Typical 600 Ft (183m);
◦600W/50kHz : 5Ft (1.52m) to 1500Ft (457m), Typical 1350 Ft (411m)
- Connectors:
◦In/Out NMEA ports: 2 x Nmea 0183
◦GPS connection with the quick disconnect bracket for SW501ce
◦Power In/Out: 10 pin
EN 60945
如需提供其他型号，请联系我们。
SW501ci
P2CHT10ASE
- Microprocessor: ARM9 S32442MSP3 300MHz
- Display: 5" TFT LCD Colour
- Sunlight viewable Display
- Resolution: 240x320
- Power consumption: 12W (24W peak with FF on) - 1A @ 12V
- Supply Voltage: 10-35 Vdc
- Cartridge slots: 1 x SD-Card
- GPS Antenna: SW501ci internal
- Operating temperature: 0-55 °C
- Frequency: 50/200 Khz
- Depth Range:
◦1KW/200kHz : 2.5Ft (0.76m) to 1200Ft (366m), Typical 980Ft (299m);
◦1KW/50kHz : 5Ft (1.52m) to 4000Ft (1219m), Typical 2700Ft (823m);
◦600W/200kHz : 2.5Ft (0.76m) to 700Ft (213m), Typical 600 Ft (183m);
◦600W/50kHz : 5Ft (1.52m) to 1500Ft (457m), Typical 1350 Ft (411m)
- NMEA inputs/outputs: 2 x NMEA 0183
- Connectors:
◦Quick disconnect bracket for supply and data: 10 pins
◦FF transducer: 8 pins
